Description

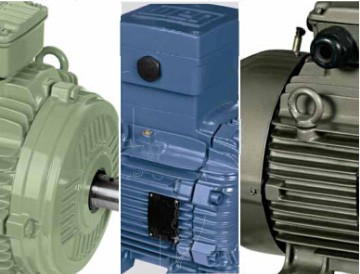

Three phase asynchronous motor, low cost, high technology. Easy to adapt to different application modes, flexible installation, easy operation, and low maintenance costs. The motor is designed strictly in accordance with the IEC34 standard to ensure greater energy efficiency. Three efficiency levels of W21 motors; Standard efficiency IE2, high efficiency IE3, ultra high efficiency IE4, suitable for use with frequency converters.
Standard features:
Three phase multi voltage, IP55. Fully enclosed self fan cooling (TEFC IC411)
Cast iron machine base, 80-355M/L
Rat cage rotor/aluminum
Install V-shaped rings on both ends
Discharge condensate drain hole
AISI 304 stainless steel nameplate
N Design
Insulation level: F (B)
Continuous drip immersion process (280-355 machine base)
Work schedule: S1
Environmental temperature: -20~40 degrees Celsius, altitude: 1000 meters
Size according to IEC72 standard
Machine base size 225S/M and above, each equipped with a PTC thermistor
Suitable for use with frequency converters
Topcoat color: IE2: RAL5009 IE3: RAL5009 IE4: RAL6002
Optional features:
Protection level: IP56, IP65, IP66
Sealing: lip seal oil seal labyrinth seal
Thermal protection: PTC thermistor bimetallic detector or PT100 heating belt H-grade insulated roller bearing oil nozzle (specific additional accessories to be discussed with the manufacturer before ordering)
