Description

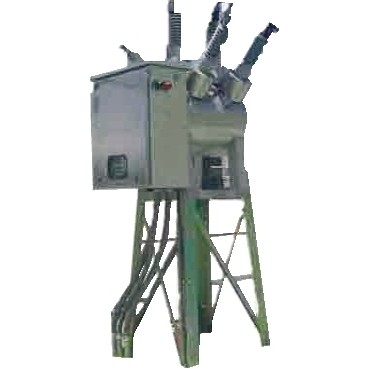

VOX outdoor tank circuit breaker adopts vacuum arc extinguishing and SF6 insulation, which is a highly reliable substation solution.
The sealed structure can operate in harsh external environments with minimal maintenance required
The rated parameters can reach 38kV/2000A/40kA
The rated lightning impulse withstand voltage can reach 200kV
Spring operated mechanism, capable of means operation
Working temperature: -40 ° C to+50 ° C (standard)/-65 ° C to+55 ° C (optional)
Altitude: 3000 meters (10000 feet)
Through internal combustion arc test and shock resistance test
The outgoing line uses EPDM rubber large creepage sleeves, and each sleeve can be optionally equipped with CT
Selective configuration of lightning arresters, voltage transformers, and protection control devices
The product complies with the standards of IEC, ANSI/IEEE, BS, GOST, AS, and GB
