Description

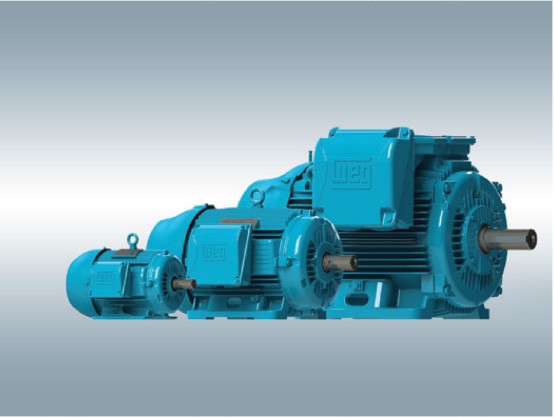

WEG has designed a new series of W22 motors using independently developed analysis and design software, such as structural analysis software, fluid dynamics software, and electrical design optimization software. The highest efficiency level exceeds the IE4 standard, and the noise level is significantly reduced. As a globally leading product of WEG, the group has decided to gradually introduce the W22 series 315L frame size motor to the Chinese market. The power range is from 110KW to 315KW, and the series is 2P-8P. The product is more compact and beautiful.
Standard features:
Power: 110KW-315KW
Level: 2-8P
Voltage: 380-415/660V
Color: IE2 (RAL5009) IE3 (RAL6002)
Insulation level: F (B)
Service coefficient: 1.0
Thermal protection: one PTC for each item
Installation method: B3T
Cooling method: TEFC
Sealing method: WSEAL
Protection level: IP55
Standard features:
Power: 110KW-315KW
Level: 2-8P
Voltage: 380-415/660V
Color: IE2 (RAL5009) IE3 (RAL6002)
Insulation level: F (B)
Service coefficient: 1.0
Thermal protection: one PTC for each item
Installation method: B3T
Cooling method: TEFC
Sealing method: WSEAL
Protection level: IP55
